LumiNet is a network of low-cost intelligent pixels that...
|
|---|
Categories |
|
|---|
For Snip |
loading snip actions ... |
|---|---|
For Page |
loading url actions ... |

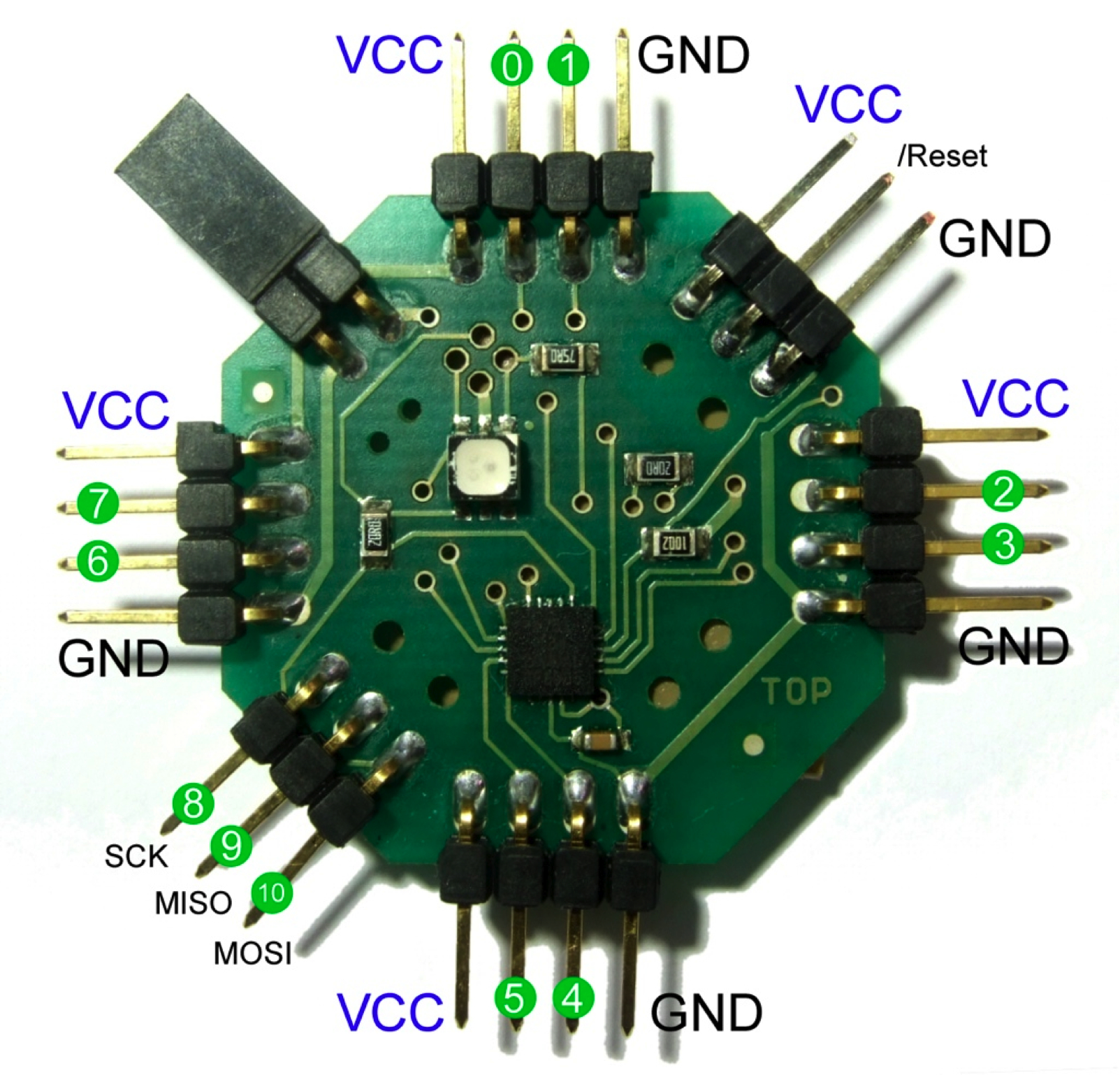

Each node consists of an RGB LED, microcontroller, and connectors to its neighbors. Sensors attached to nodes may inject stimuli into the network.
New behaviors are injected into the network from a single vector node attached anywhere in the network, in a viral fashion we dubbed "programming by infection".
LumiNet nodes can be used in academia to teach concepts ranging from simple tree algorithms, to wave equations, to swarming behavior, but they are also designed to easily create wearable light-up body networks. Multiple people wearing LumiNets can connect over the air using Send/Receive nodes.
Jan Borchers - idea, hardware board design
René Bohne - programming by infection code
Gero Herkenrath - IR Send/Receive nodes
Ina Rixen - clothes design and sewing
2008-02-05: Initial design concept (jb)
2008-02-20: First working prototype implementation on microcontroller (jb)
2008-03-02: First SMD prototype (jb)
2008-05-31: Bidirectional topology redesign (jb)

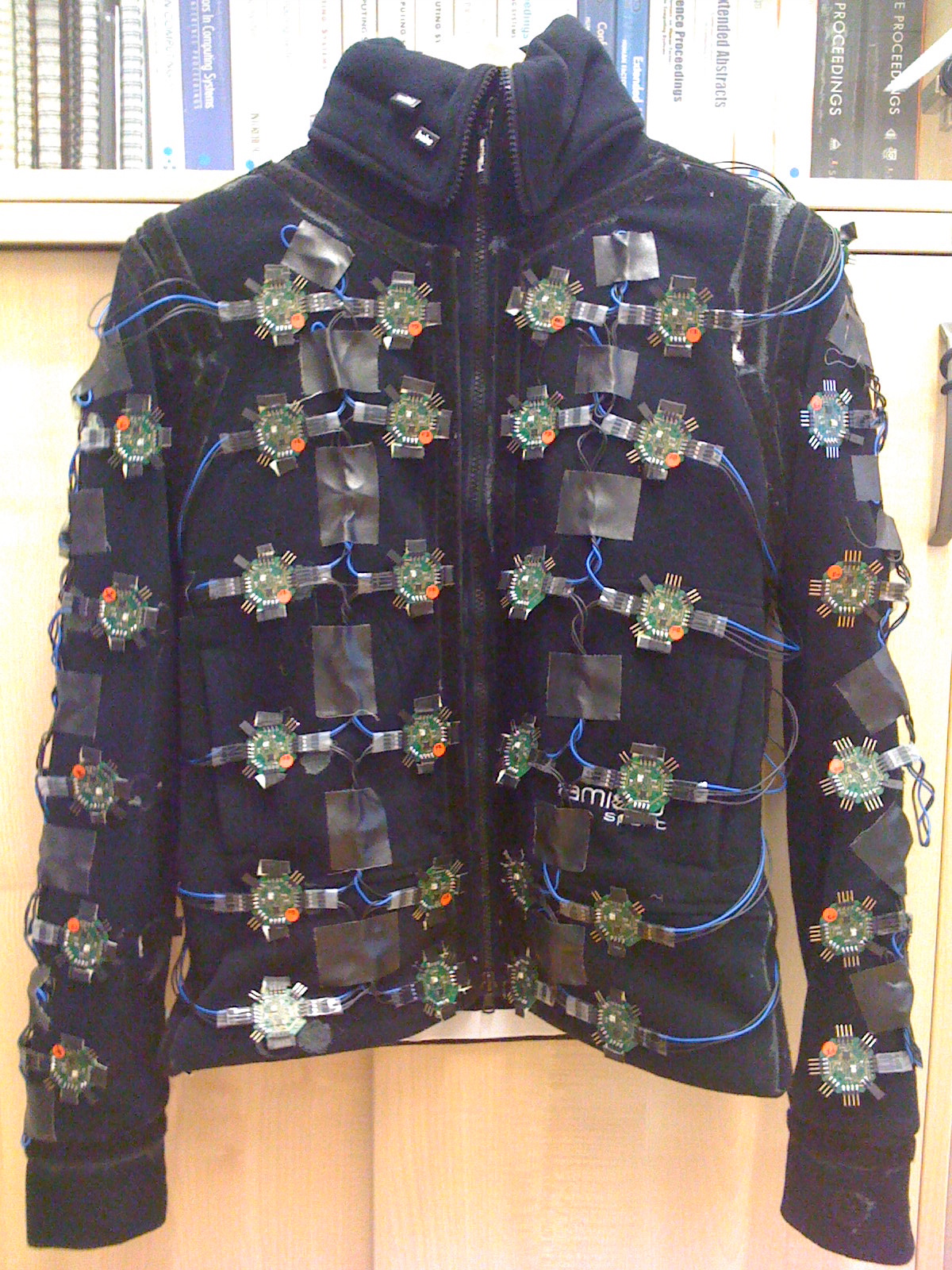

2008-08-20: Hardware and software for two interactive jackets complete
| LumiNet_Jacket |
| LumiNet_Node |
